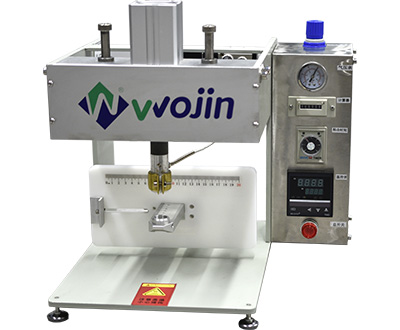

Semi-Automatic Valve Applicator VM-02

Product Name: Semi-automatic Valve Applicator

Model: VM-02

Brand: WOJIN

Manufacturer: Wojin Plastic Product Factory

Material: aluminum

Color: silver

Weight: 20kg

Price: $ 800


Product Description

Mechanical Body: This Semi-Automatic Valve Applicator VM-O2 is made of Aluminum Body Fame.

Electrical Part: It worked and displayed by the multi-digital modulator (such as temperature control was stable and reliable; Time relay to control welding time, pneumatic part precise control pressure, with a foot-switch to handle the working status.)

Multi-Usage: With wide range of uses coffee packing, it is ideal for one-way degassing valve sticking pressure.

Area Need: occupy really smaller area.

Auxilary Device: To running it need smaller low pressure air compressor required.

Advantage: The Series VM-02 valve applicators make the Series VM-01 preferable, is the simplest to operate and no need to instale, occupies a small area. Designed in different structure, easy set-up, quick start up, controllability, when changing film materials or package size,will allow you to use standard pre-made kraft paper bags and aluminum foil bags (thickness greater than 12C ).Good at heat sealed valve ,high efficiency and speed.

1. Guarantee: Semi-Autumn Valve Applicator One year warranty against defective parts and workmanship.

2. Features:

Good for any color of pouches, clear. solid, silver, gold or multi colors.

Spring loaded of valve sealing head to prevent damaging foil layer.

Good for large or small size of valves available in the market.

Good for pre-made pouches with multi layers of polyester and sealant with or without aluminum foil bags.


Machine speed: 75 to 100 Strokes / Min

Max distance valve from top of pouch: 6 (170 mm)

Overall dimension: 394mm ( W ) X 454mm ( D ) X 300mm ( H )

Net weight: 20kgs

Power requirement: 110v or 220v, 50 or 60 Hz

Minimum bag size: 38mm wide with 50mm side gussetr


MEAS: 394*454*300mm

Gross weight: 22.5kgs

Pack by: wooden box

Air Compressor ( auxiliary equipment need)

Air Compressor Type: up to 0.3Mpa


"Small model and good work performance."

---Marcelo Ferrais---

"Less occupied, suitable for small-scale production."

---Diego Valdivia Gensollen---
