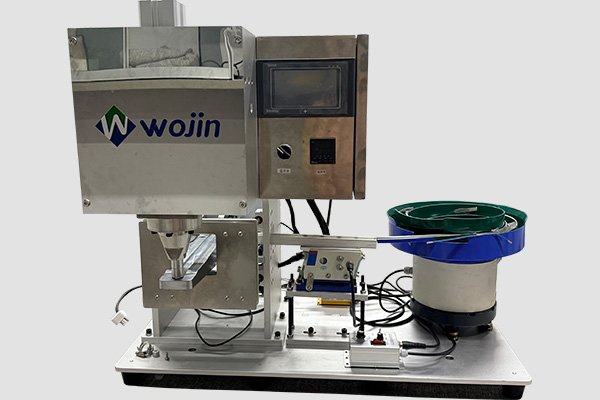

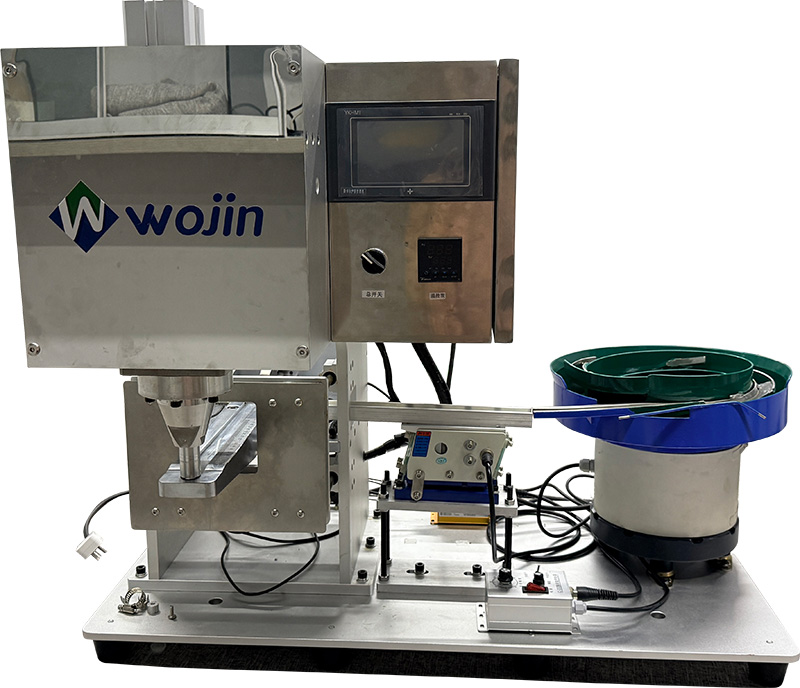

Semi-Automatic Valve Applicator VM-04 PRO
As an upgraded version of VM-04, the VM-04 PRO valve applicator enhances operator safety by utilizing a touch-activated sensor system for the insertion process. The upgraded feeding system adopts a direct vibration + vibratory feeder for stable feeding, which effectively improves the slow efficiency of the pressure valve and the instability of the feeding valve, and helps to improve the operating efficiency of the packaging production line.
VM-04 PRO (150)
◉Dimensions: 100cm(L) x 85cm(W) x 80cm(H) (Measured manually,actual product shall prevail)
◉Speed: Depends on the skill level of the customer's workers, estimated at 15-20 bags/ minute.
◉Voltage: 220 V
◉Frequency: 50 Hz
◉Heating coil output power: 200 W (Heating rod power can be changed according to product requirements)
◉Minimum bag dimensions: Width 65 mm, gusseted section: 40 mm
◉Maximum valve pressure distance: 50-150 mm (measured from the bag opening)
◉Number of holes: Standard 3 holes (2-6 holes can be customized according to customer requirements)
◉Input air source: Not lower than 0.6 MPa, the air pressure must be clean and free of water.
◉Accessories: Heat-resistant cloth, heating element, K-type temperature control wire, and a set of hex keys.
◉Packaging / Specifications: Wooden Crate 100 cm)(L) × 90 cm (W) × 95 cm (H) (measured manually, actual dimensions may vary)
◉Net weight: 101 kg
◉Gross weight: 140 kg
VM-04 PRO (200)
◉Dimensions: 100cm(L) x 95cm(W) x 80cm(H) (Measured manually,actual product shall prevail)
◉Speed: Depends on the skill level of the customer's workers, estimated at 12-15 bags / minute.
◉Voltage: 220 V
◉Frequency: 50 Hz
◉Heating coil output power: 200 W (Heating rod power can be changed according to product requirements)
◉Minimum bag dimensions: Width 65 mm, gusseted section: 40 mm
◉Maximum valve pressure distance: 50-200 mm (measured from the bag opening)
◉Number of holes: Standard 3 holes (2-6 holes can be customized according to customer requirements)
◉Input air source: Not lower than 0.6 MPa, the air pressure must be clean and free of water.
◉Accessories: Heat-resistant cloth, heating element, K-type temperature control wire, and a set of hex keys.
◉Packaging / Specifications: Wooden Crate 100 cm)(L) × 100 cm (W) × 95 cm (H) (measured manually, actual dimensions may vary)
◉Net weight: 109.5 kg
◉Gross weight: 148 kg
Features
◉Hot pressing + pneumatic dual technology: Drilling and degassing valve installation are completed simultaneously, ensuring a firm bond.
◉The valve delivery system using direct vibration + vibratory feeder, significantly improves efficiency and enhances safety.
◉Touch-activated operate valve: The operator must touch the baffle to press the valve, which improves safety without affecting efficiency.
◉The main body of the machine is made of 6-series aluminum with sandblasted and anodized surface , while other parts are made of 45# steel with chrome plating. The vibratory feeder is made of stainless steel with rubber coating, and the parts that come into contact with the products meet the requirements for food-grade packaging equipment.
◉Intelligentization: Digital control of valve feeding and pressure valve speed, the use of induction valve feeding function to effectively improve feeding speed.
◉Replaceable mold head: Different sizes of mold heads can be easily replaced to accommodate various bag types and degassing valves.
◉The applicator comes with a 1-year warranty and comprehensive after-sales service.
Application Range
◉Suitable for composite packaging bags with a thickness of 12-25 mil, such as pure aluminum composite bags, paper-plastic composite bags, and multi-layer PE films.
